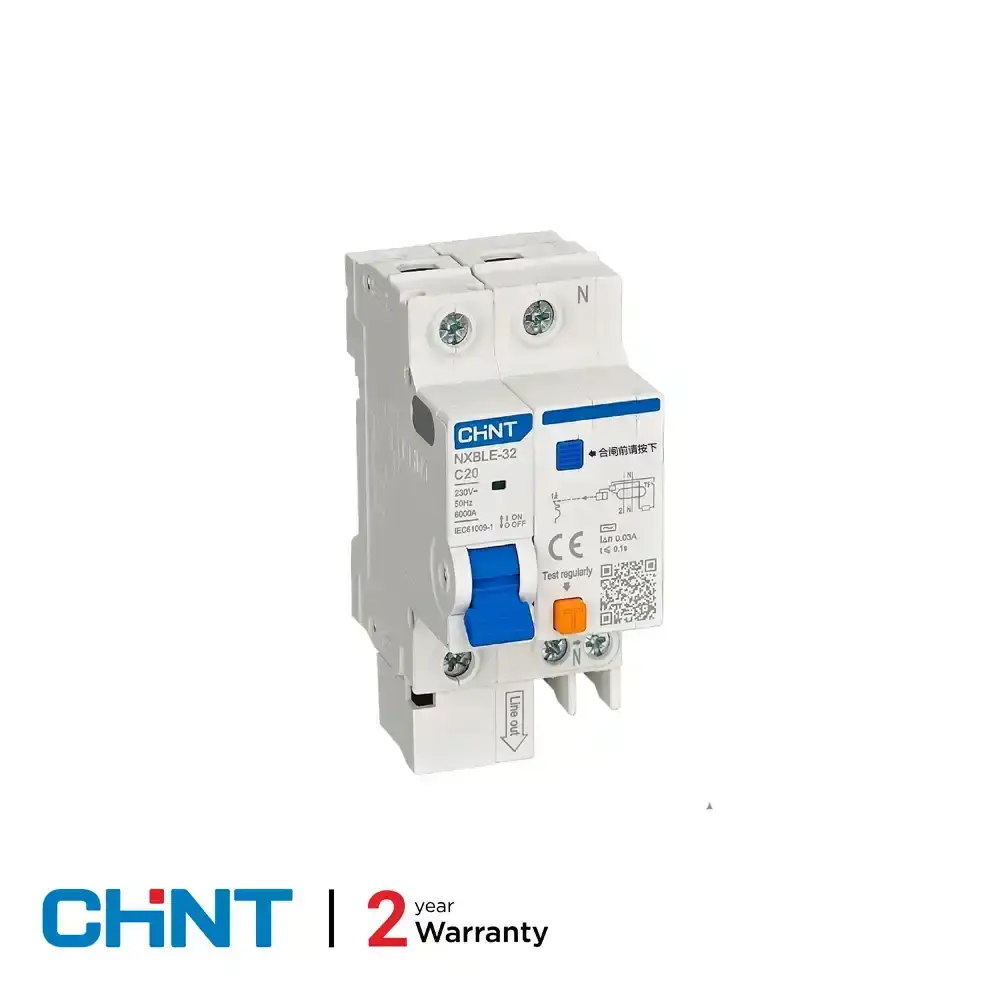

20A Residual Current Breaker with Over-Current (RCBO) 1P+N

~~৳1250~~ ৳1180

Ratting : (0)

Brand : CHINT

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Function: Combined protection against overload, short-circuit, and residual current leakage
✅ Standard Compliance: IEC/EN 61009-1
✅ Rated Current (In): 20A
✅ Rated Voltage (Ue): 230/240V AC
✅ Rated Frequency: 50/60Hz
✅ Number of Poles: 1P + N
✅ Tripping Curve: C Curve (5–10In)
✅ Rated Current Type: AC Type
✅ Rated Residual Operating Current (IΔn): 0.01A, 0.03A, 0.1A, 0.3A
✅ Rated Short-Circuit Breaking Capacity (Icn): 6kA
✅ Rated Service Short-Circuit Capacity (Ics): 6kA
✅ Rated Impulse Withstand Voltage (Uimp): 4kV
✅ Rated Insulation Voltage (Ui): 300V
✅ Rated Residual Making and Breaking Capacity (IΔm): 500A
✅ Break Time Below IΔn: ≤0.1s
✅ Rated Conditional Short-Circuit Current (Inc): 10kA
✅ Mechanical Life: 20,000 Operations
✅ Electrical Life: 4,000 Operations
✅ Operating Temperature Range: −5°C to +40°C (Average ≤35°C)
✅ Storage Temperature: −25°C to +70°C
✅ Altitude: ≤2000m
✅ Pollution Degree: 2
✅ Protection Degree: IP20
✅ Terminal Type: Cable or Pin-Type Busbar
✅ Terminal Capacity:
✅ Cable: 10mm²
✅ Busbar: 16mm²
✅ Tightening Torque: 2N·m
✅ Mounting: DIN Rail (EN) 60715, 35mm
✅ Connection Type: Top Connection
✅ Dimensions (mm): Height 86 × Width 18 × Depth 76.5
✅ Certification: CE, EAC, SAA
