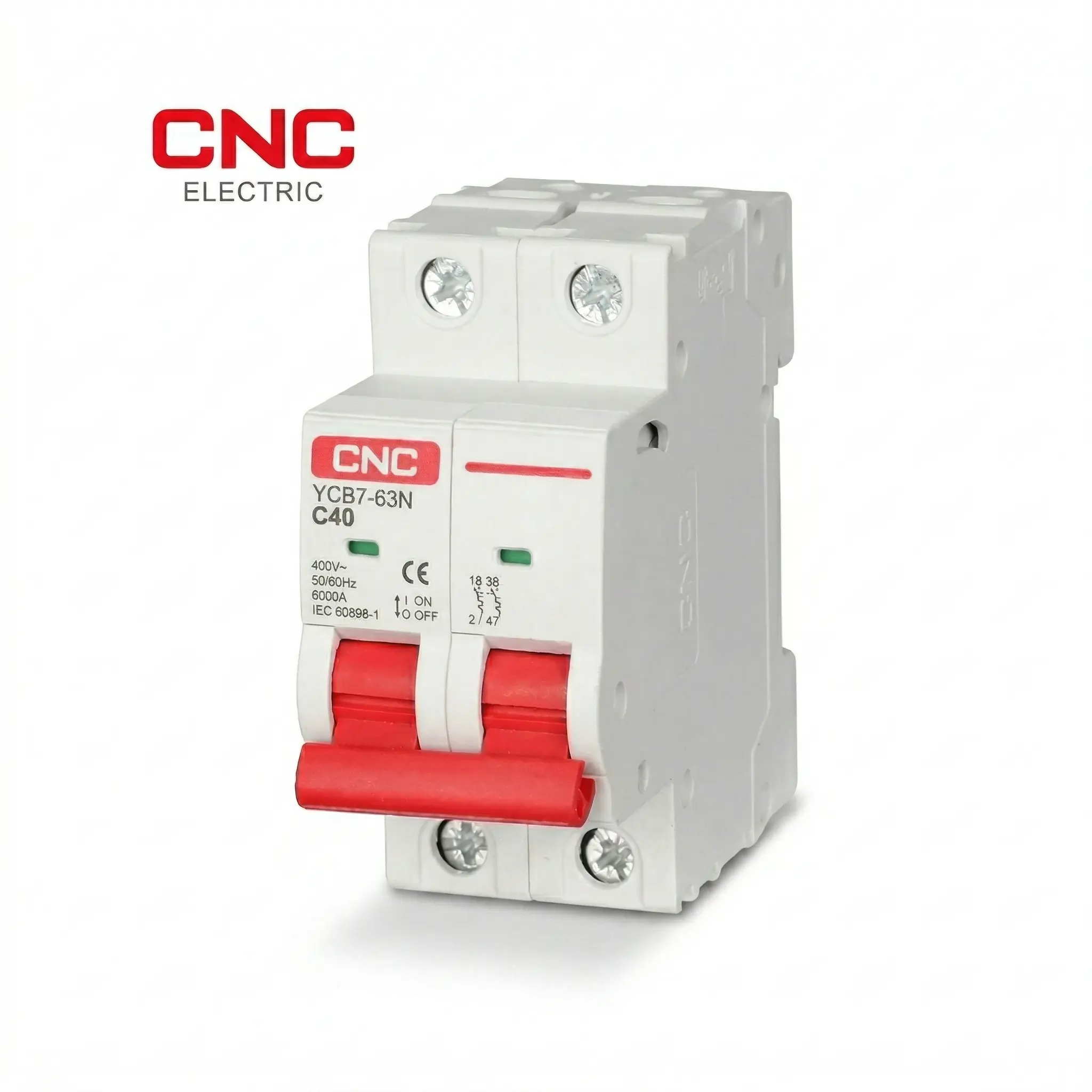

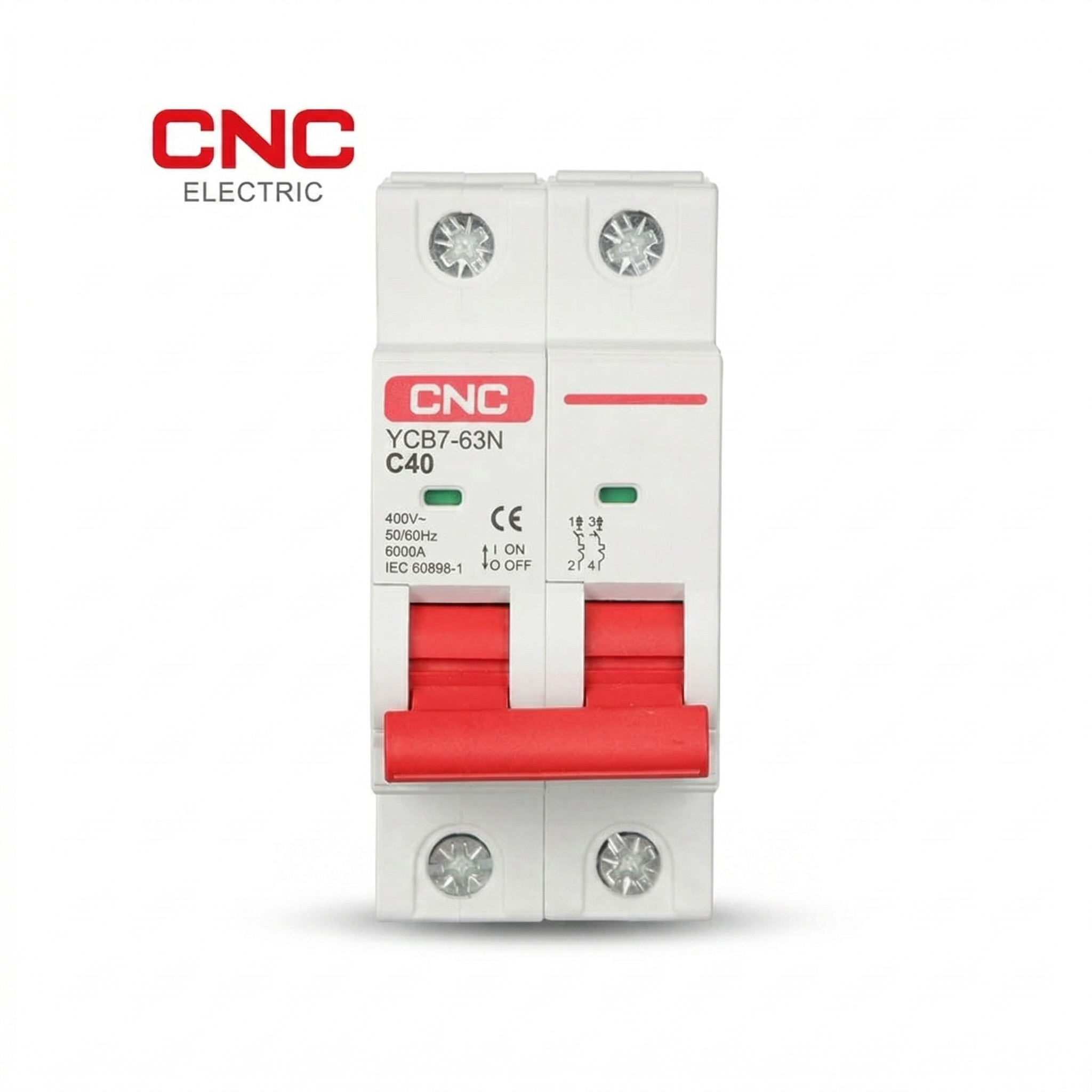

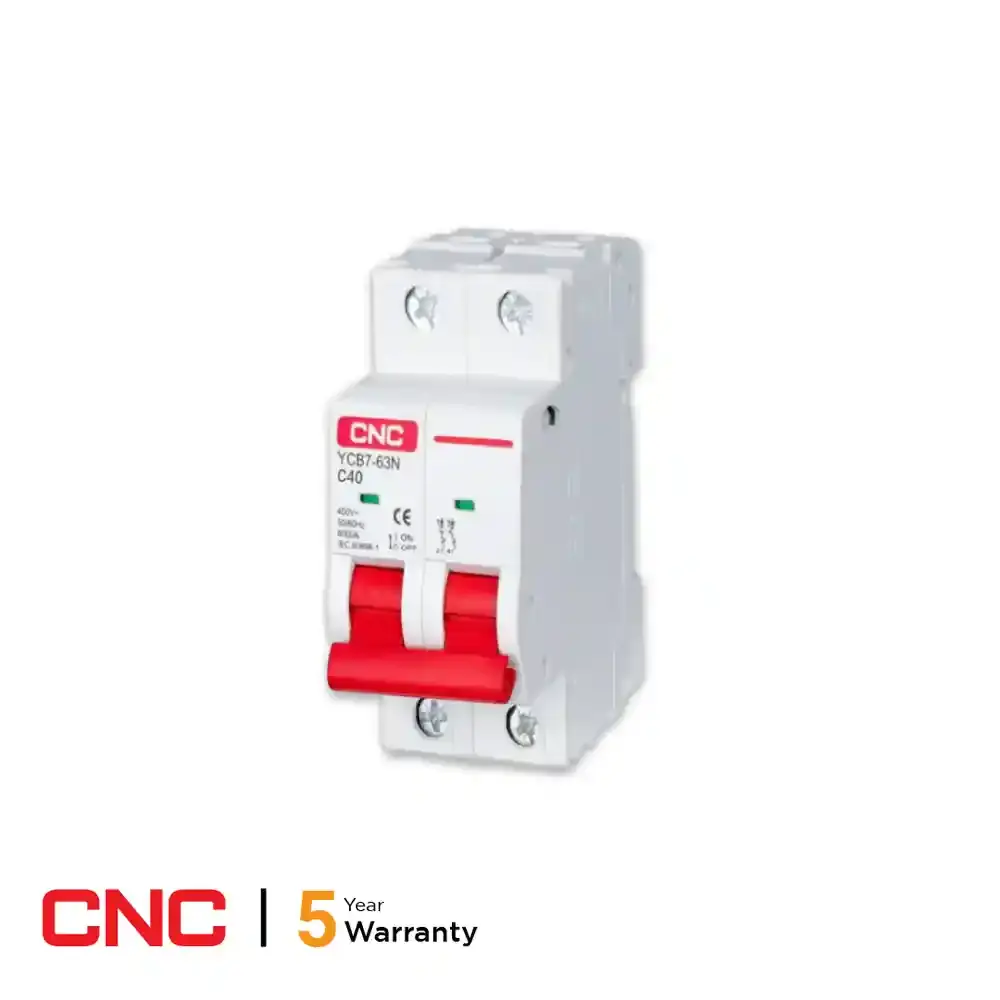

MCB Double Pole Circuit Breaker 40A (CNC)

~~৳540~~ ৳440

Ratting : (0)

Brand : CNC

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Function: Overload, Short Circuit, Isolation
✅ Number of Poles: 2P
✅ Rated Current In: 40A
✅ Rated Frequency: 50/60Hz
✅ Rated Voltage Ue: 230/400V
✅ Rated Insulation Voltage Ui: 500V
✅ Rated Breaking Capacity Icn: 6000A
✅ Rated Impulse Withstand Voltage Uimp(1.2/50):4kA
✅ Pollution Degree: 2
✅ Utilization Category: II、III
✅ Trip Type: Thermal Magnetic Release
✅ Thermal Magnetic Tripping Characteristics: B, C, D
✅ Mechanical Life: 20000 Times
✅ Electrical Life: 10000 Times
✅ Protection Degree: IP20
✅ Anti-moisture and heat resistance: When The relative humidity of the air does not exceed 50% when the ambient air temperature is +40°C, and its relative humidity may be higher at lower temperatures
✅ Reference ambient temperature: 30°C
✅ Ambient temperature: -5°C-+40°C, 24-hour average value not exceeding +35°C
✅ Altitude: not exceeding 2000 meters
✅ Terminal connection type: Cable/pin-type busbar
✅ Terminal size: 25 mm²
✅ Top/bottom for wire: 18-3 AWG
✅ Terminal size: 25 mm²
✅ Top/bottom for busbar: 18-3 AWG
✅ Torque: 2 N*m
✅ In lbf: 18
✅ Tools: 18 Phillips screwdriver or flat-blade screwdriver
✅ Installation: On DIN rail EN 60715 (35 mm) via quick clip device
✅ Wiring method: From top or bottom
✅ Replacement Warranty: 5 years
