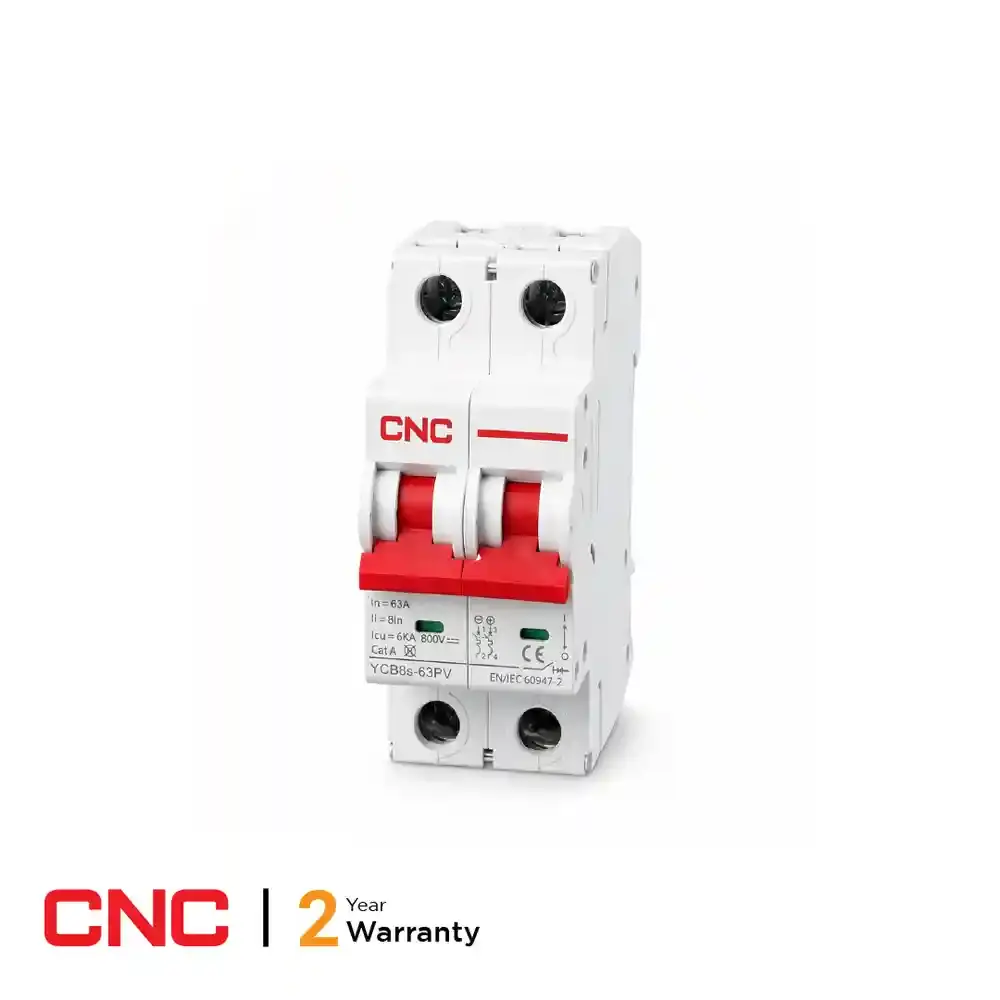

CNC DC MCB Circuit Breaker MCB (DC Circuit Breaker)-63A

~~৳1500~~ ৳1280

Ratting : (0)

Brand : CNC

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Model: YCB8s-63PV
✅ Voltage: Rated for 230V, with models capable of up to DC800V or DC1200V
✅ Current Rating: 63A
✅ Breaking Capacity: 6kA
✅ Warranty: 2-year warranty offered
✅ Number of Poles: 2
✅ Rated Working Voltage (V) (Ue): DC 800
✅ Rated Insulation Voltage (V) (Ui): DC 1000
✅ Rated Impulse Withstand Voltage (Uimp) (KV): 4
✅ Rated Current (In) (A) 63
✅ Ultimate Short-Circuit Breaking Capacity (Icu) (KA): Default: 6; H:10
✅ Instantaneous Tripping Characteristics: B, C, K
✅ Service Life (times): Mechanical: 20000, Electrical: 1500
✅ Protection Degree: IP20
✅ Operating Ambient Temperature: -25°C ~ +40°C
✅ Altitude: ≤ 2000m
✅ Wiring Capacity (mm²): 25
✅ Connection: Both upper and lower incoming lines are acceptable

Note:
1. The warranty will not be valid for damage caused by incorrect installation.
2. It is better to give a maximum of 80% load. If the load is correct, the device will serve for a long time, InshaAllah.
3. The warranty will not be valid for overload/lightning/terminal burnout or external damage.
4. Call the support center for any problem or assistance.
5. To get the warranty, you must have the warranty card with hologram sticker and date.

Delivery:
Delivery is done through any courier service in Bangladesh. The buyer has to bear all the expenses. However, if the quantity is more, home delivery is done by own transport.

Payment method:
100% cash on delivery (home delivery) facility is available for any product up to 2500/= taka throughout Bangladesh. (Conditions Apply)
