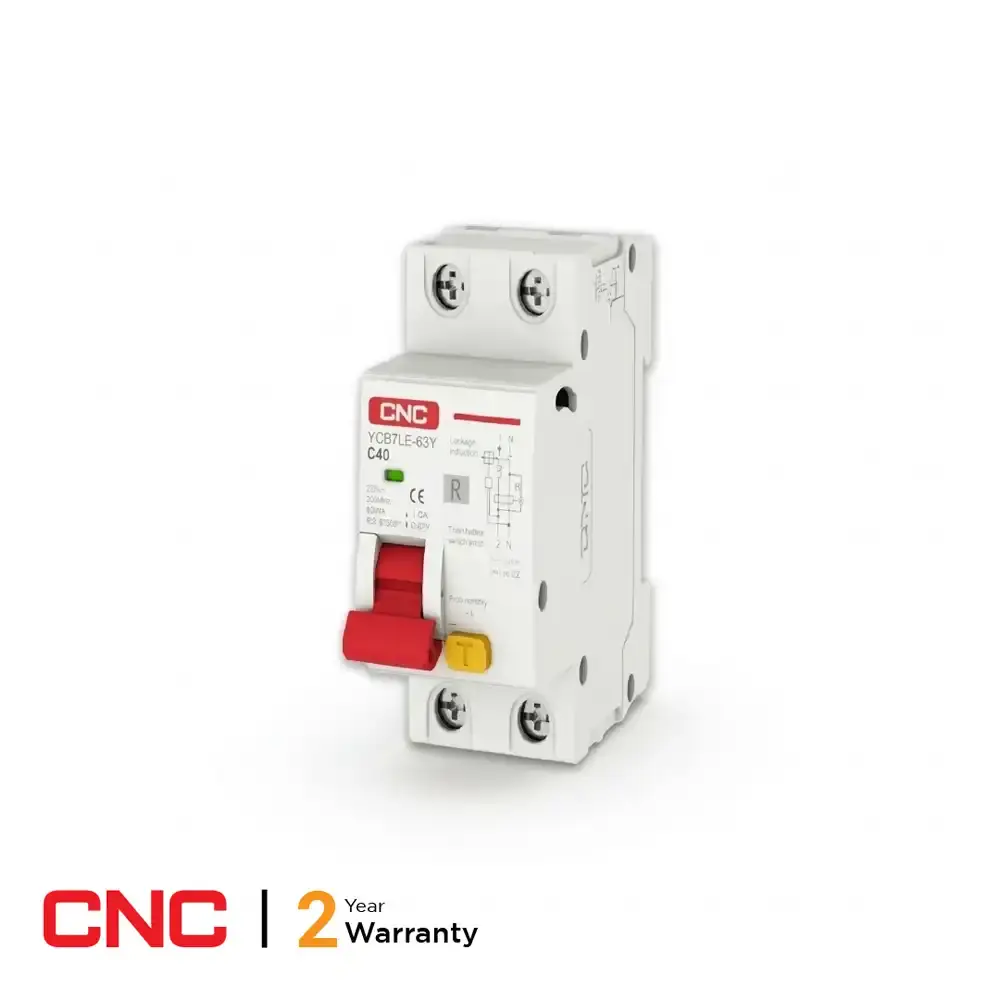

40A RCBO (Residual Current Operated Circuit Breaker)-(CNC)

~~৳1350~~ ৳999

Ratting : (0)

Brand : CNC

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

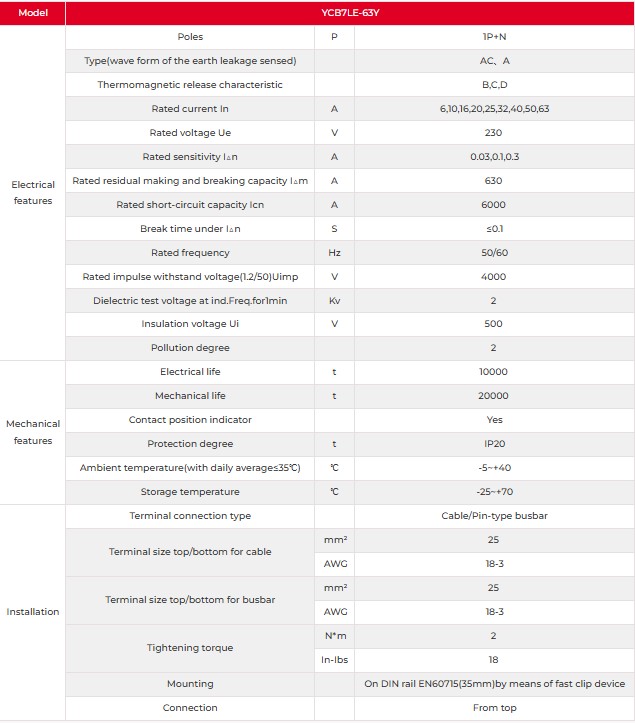

Product Details:
✅ Model: YCB7LE-63Y
✅ Poles: 1P+N
✅ Type (Earth Leakage Sensing Waveform): AC、A
✅ Thermal-Magnetic Release Characteristics: B,C,D
✅ Rated Current In: 40A
✅ Rated Voltage Ue: 230V
✅ Rated Sensitivity I△n: 0.03,0.1,0.3 A
✅ Rated Residual Making and Breaking Capacity I△m: 630A
✅ Rated Short-Circuit Capacity Icn: 6000A
✅ Break Time Below I△n: ≤0.1S
✅ Rated Frequency: 50/60Hz
✅ Rated Impulse Withstand Voltage (1.2/50) Uimp: 4000V
✅ Dielectric Test Voltage. Frequency for 1 Minute: 2 Kv
✅ Insulation Voltage Ui: 500V
✅ Pollution Degree: 2
✅ Electrical Life: 10000 Times
✅ Mechanical Life: 20000 Times
✅ Contact Position Indicator: Yes
✅ Protection Degree: IP20
✅ Ambient Temperature (Daily Average ≤35℃): -5~+40℃
✅ Storage Temperature: -25~+70℃
✅ Terminal Connection Type: Cable/Pin-Type Busbar
✅ Terminal Size for Wire Top/Bottom: mm² 25, AWG: 18-3
✅ Terminal Size for Busbar Top/Bottom: mm² 25, AWG: 18-3
✅ Tightening Torque: N*m: 2, In-Ibs: 18
✅ Mounting: On DIN Rail EN60715(35mm) by Quick Clip Device
✅ Connection: From Top
