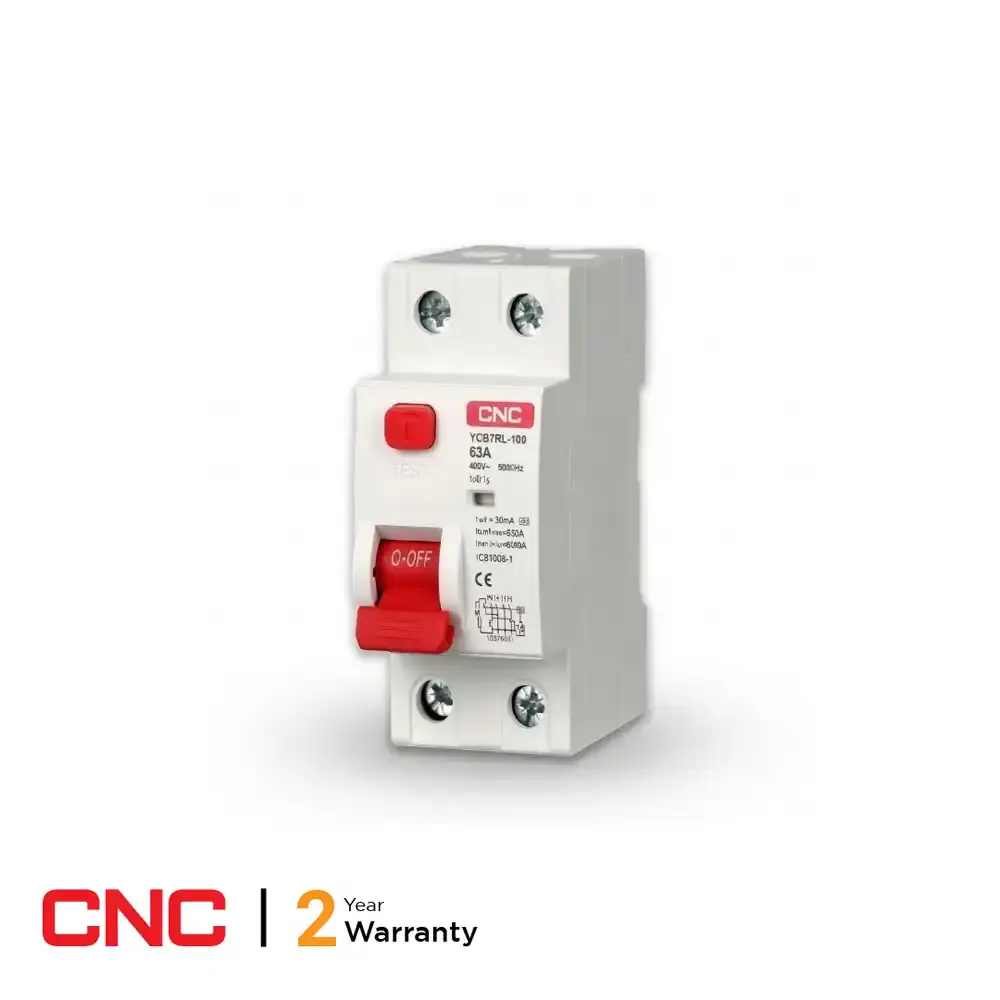

63A RCCB- Type-AC (CNC)

~~৳1350~~ ৳1170

Ratting : (0)

Brand : CNC

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Model: YCB7RL-100
✅ Leakage Type: Electromagnetic Type
✅ Rated Current In: 63A
✅ Type (Earth Leakage Sensing Waveform): A, AC
✅ Poles: 1P+N, 3P+N
✅ Rated Voltage Ue: 230/400V
✅ Insulation Voltage Ui: 500V
✅ Rated Frequency: 50/60 Hz
✅ Rated Breaking Capacity Incorporated = I△c: 600,010,000 A
✅ Rated Impulse Withstand Voltage (1.2/50) Uimp: 6000 V
✅ Dielectric Test Voltage at Rated Frequency for 1 Minute: 2.5 Kv
✅ Rated Sensitivity I△n: 0.03, 0.1, 0.3 A
✅ Rated Residual Making and Breaking Capacity IAm: 500 (In≤40A); 630 (In=50A/63A); 1000 (In=80A/100A)
✅ Pollution Degree: 2
✅ Electrical Life: 4000 Times
✅ Mechanical Life: 8000 Times
✅ Protection Degree: IP20
✅ Storage Temperature: -25~+70℃
✅ Ambient Temperature (Daily Average ≤35℃): -5~+40℃
✅ Terminal Connection Type: Cable/Pin-Type Busbar/U-Type Busbar
✅ Terminal Size for Wire Top/Bottom: 25/35 mm²
✅ Terminal Size for Busbar Top/Bottom: 18-3/18-2 AWG
✅ Tightening Torque: 10/16 mm², 18-8/18-5 AWG
✅ Mounting: N*m 2.5, In-Ibs 22
✅ Connection: On DIN Rail EN 60715 (35mm) through Quick Clip Device, from Top or Bottom.

Warranty:
2 Years Official Brand Warranty.
