Product Details:

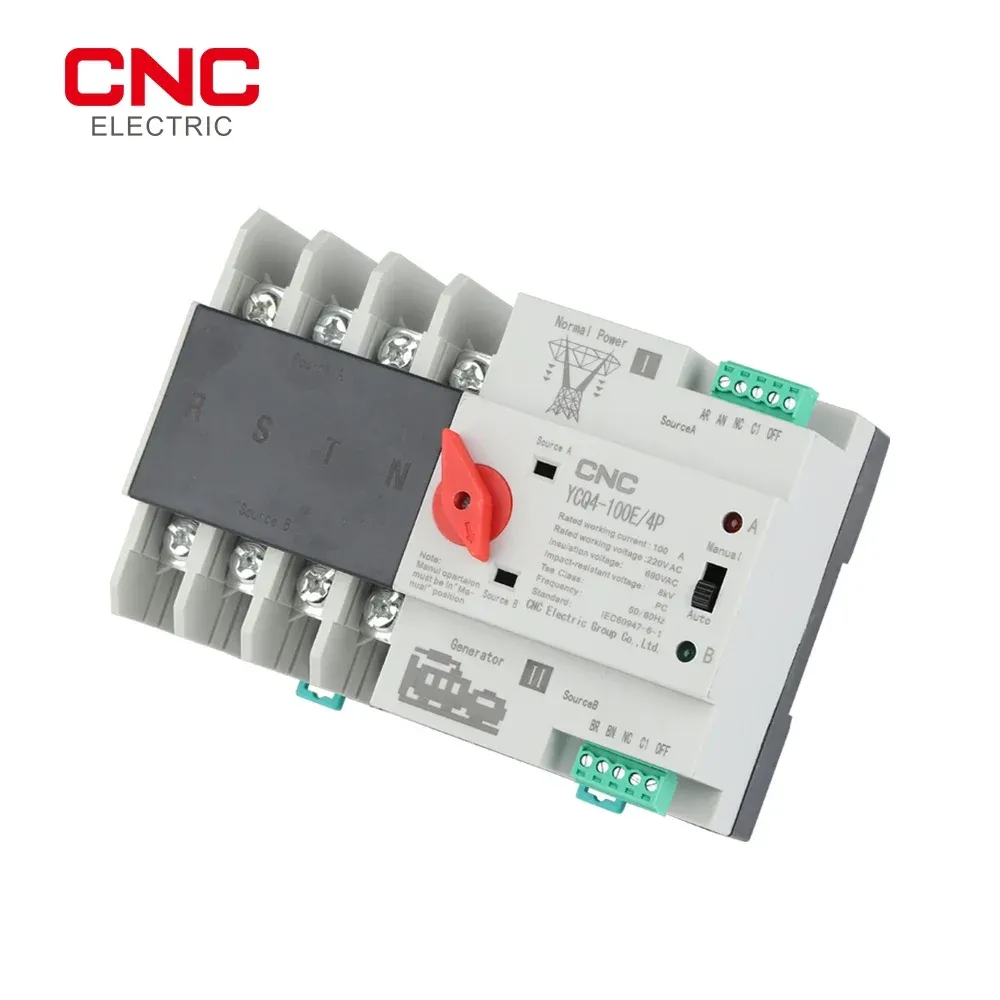

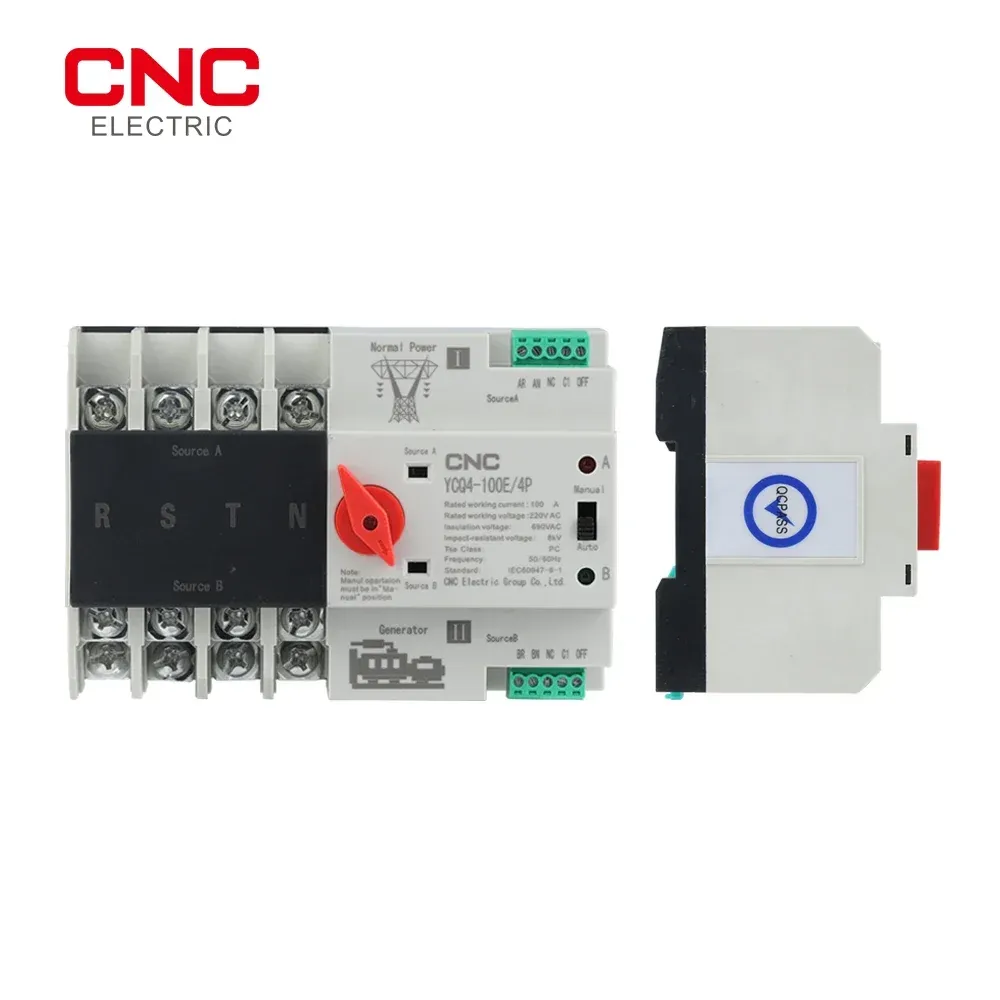

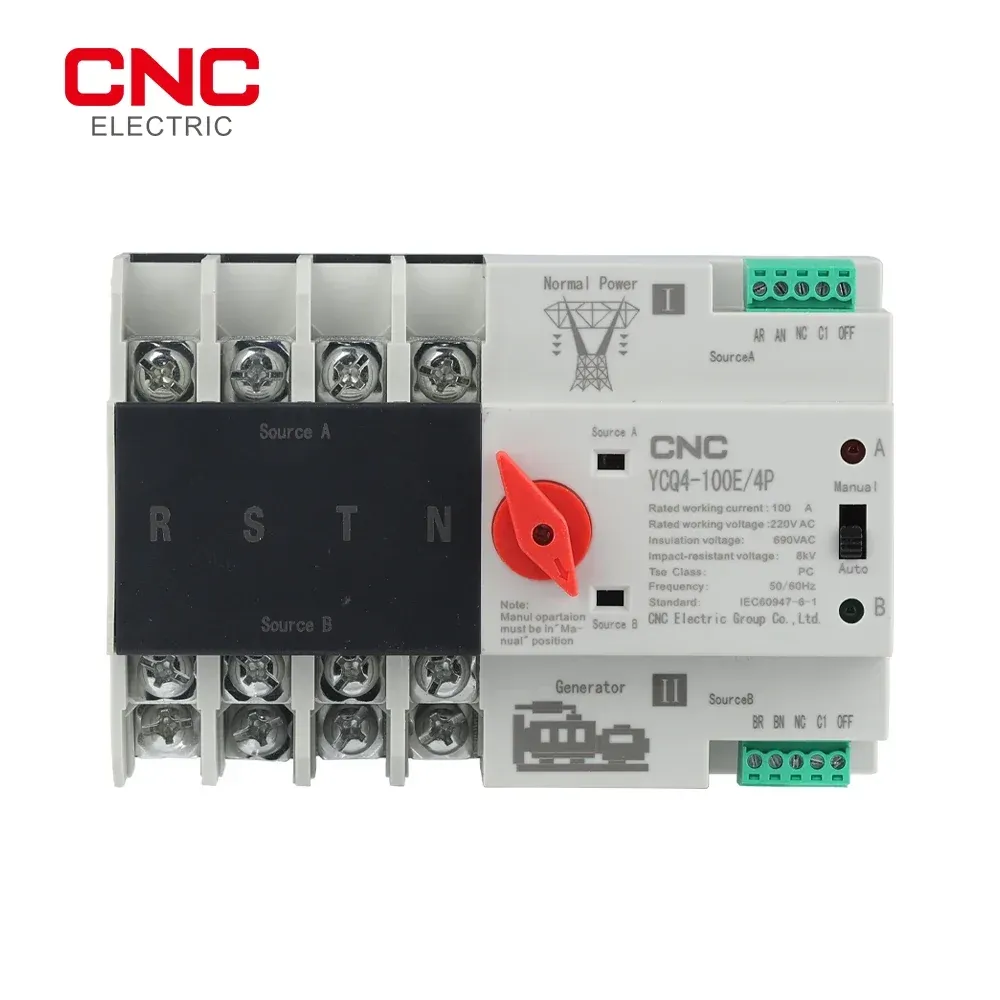

✅ Type: YCQ4-100E/4P
✅ Brand: CNC
✅ Pole: 4P
✅ Rated working current: 100A
✅ Rated working voltage: 220V AC
✅ Insulation voltage: 690VAC
✅ Impact-resistant voltage: 8kA
✅ Tse class: PC
✅ Frequency: 50/60Hz
✅ Standard: IEC60947-6-1
✅ Dual power automatic switch is a newly developed micro household power switch.
✅ This switch is mainly used to test whether the main power supply or standby power is normal.
✅ When the normal power supply is abnormal, the standby power supply starts working immediately, to ensure the continuity,

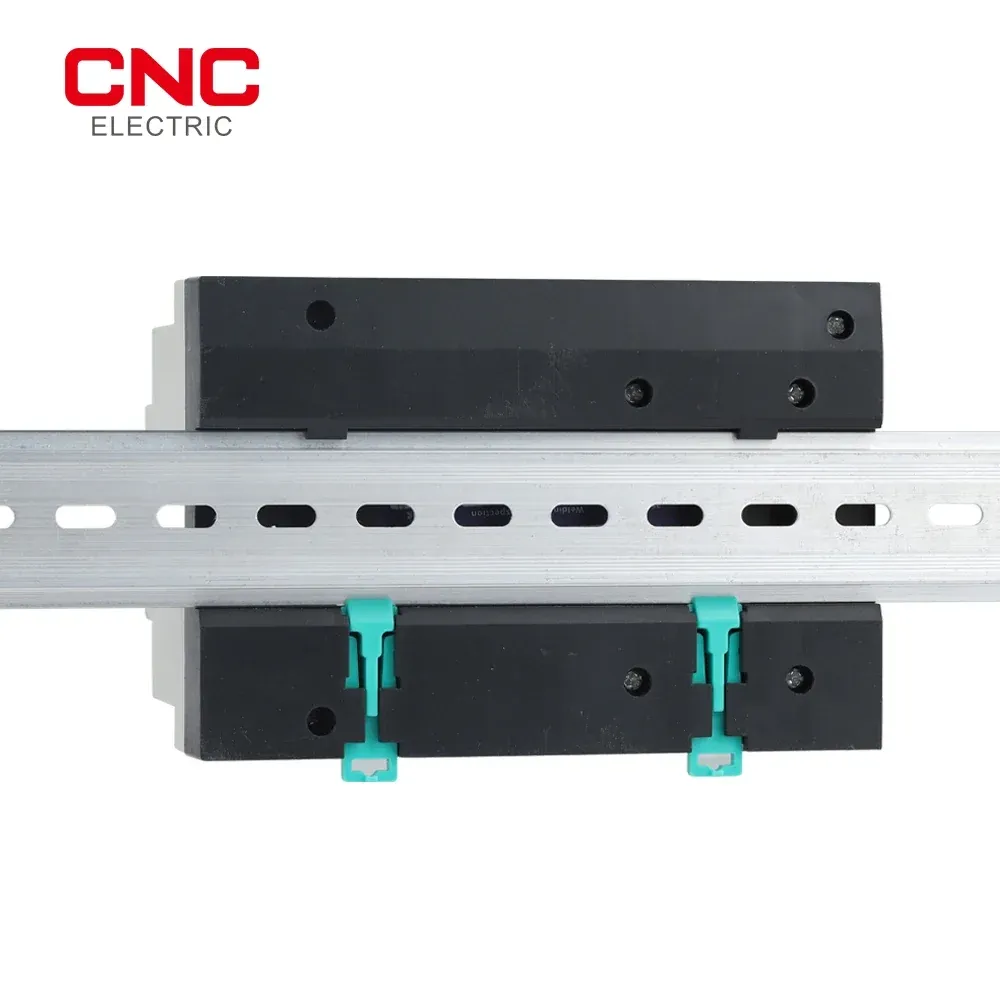

reliability and safety of the power supply. This product is specially designed for domestic track installation and is specially used for PZ30 distribution box.
✅ Dual power automatic switch is suitable for 50 or 60Hz rated 400V AC emergency power supply system.
✅ ATS has the characteristics of solid structure, reliable conversion, easy installation and maintenance, and long service life.
✅ It is widely used in various fields when power failure, that is, reliable electrical work, and manual operation cannot be maintained.
✅ ATS is composed of TSE and controller.
✅ According to GB/T14048.11, Part 6-1: Multi-function equipment and switching equipment,
✅ ATS is the most suitable low-voltage switching equipment and control device.
