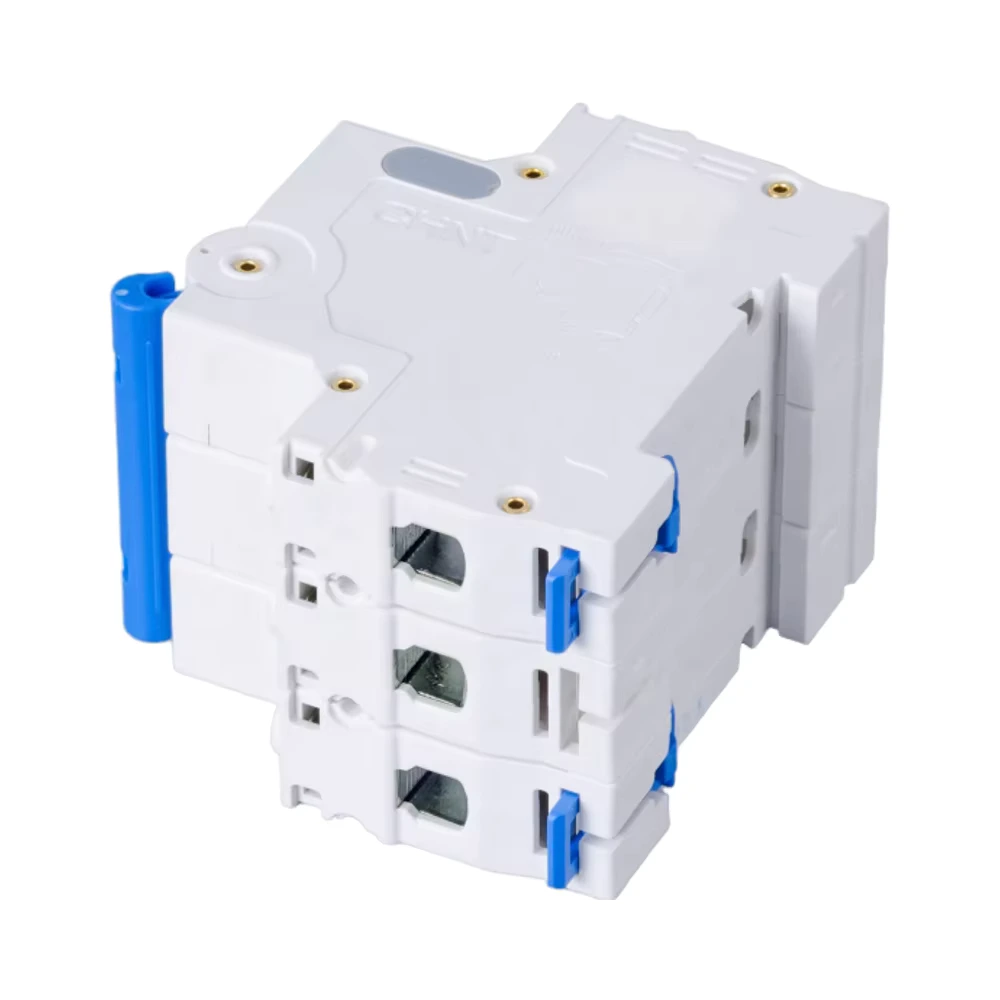

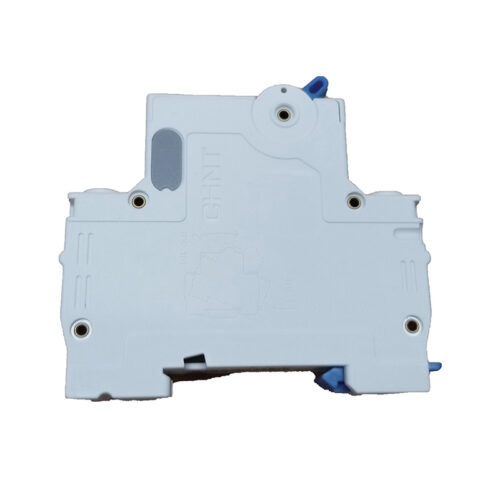

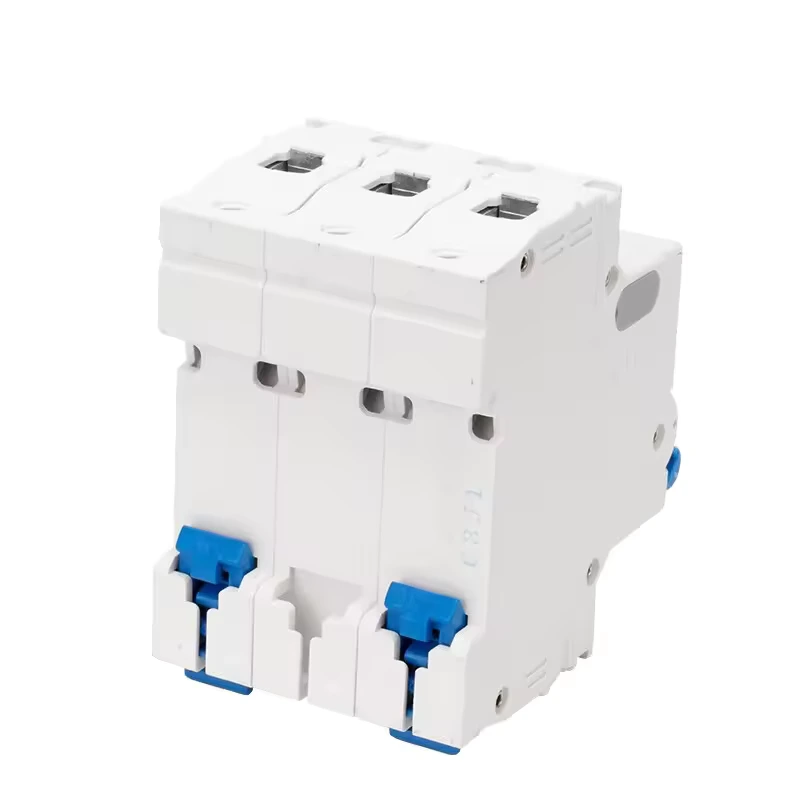

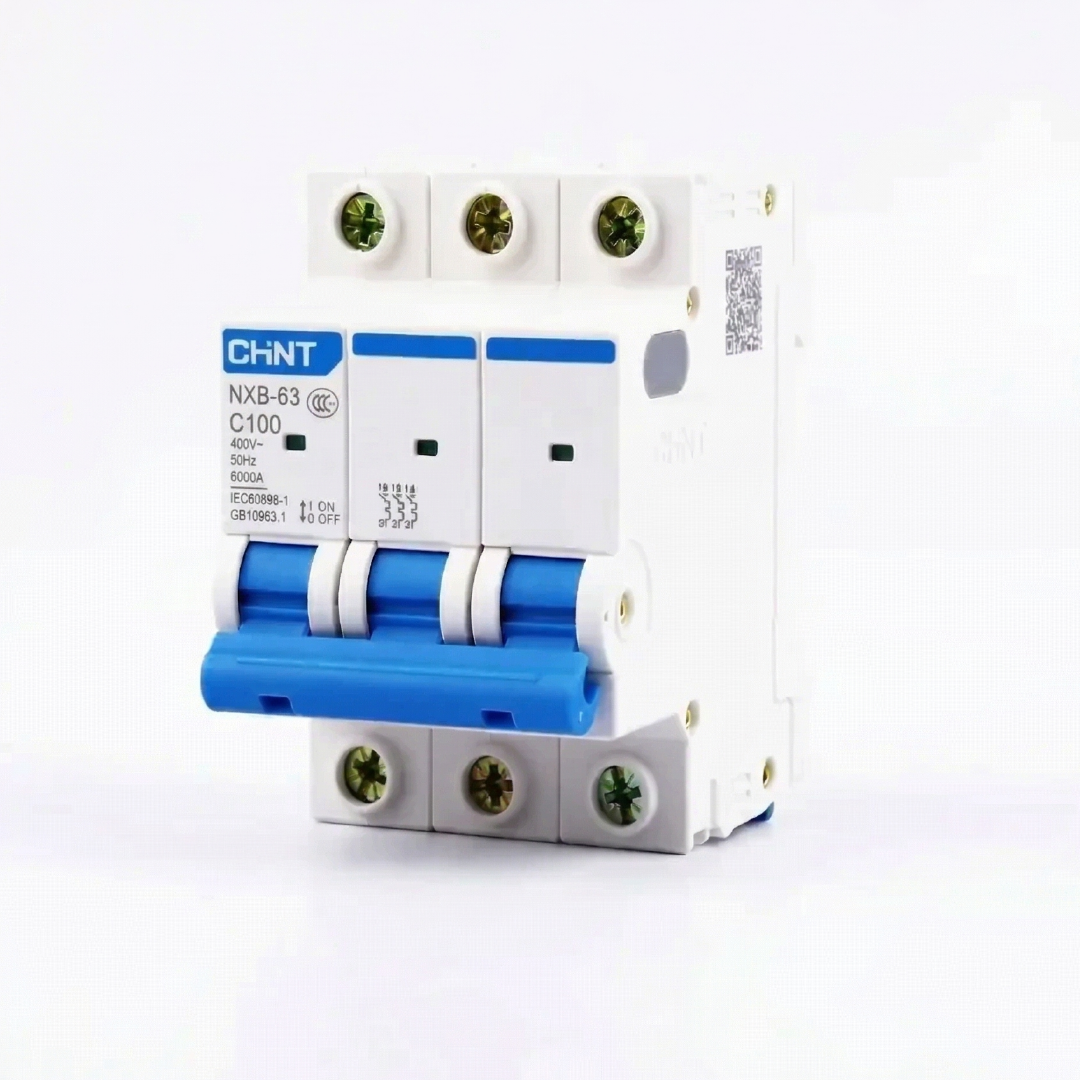

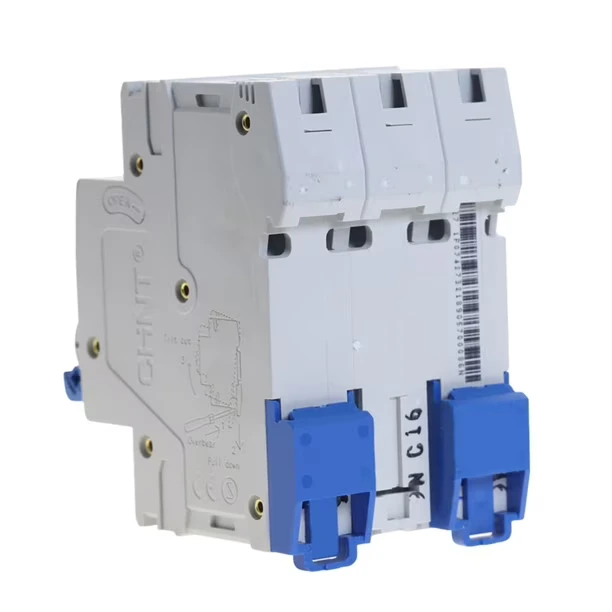

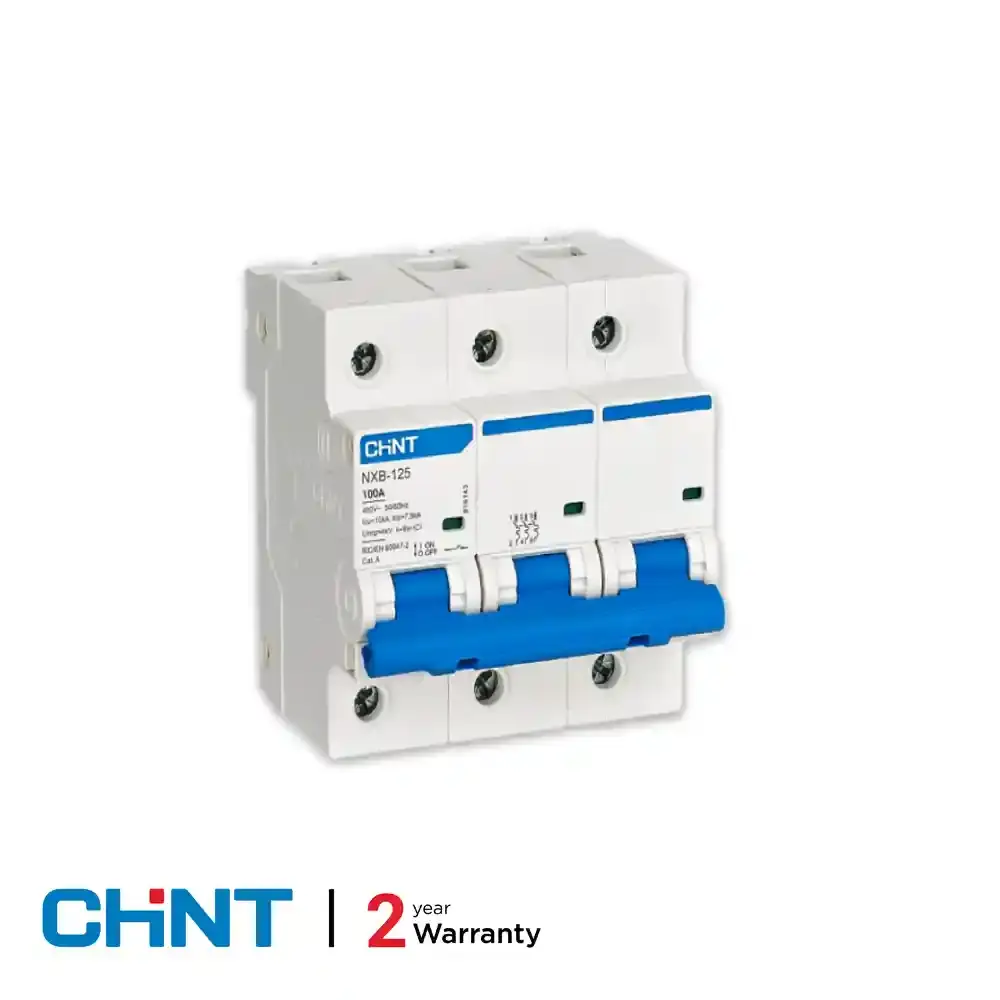

Chint NXB-100 Amp Miniature Circuit Breaker 3 pole (Chint MCB)

~~৳2050~~ ৳1650

Ratting : (0)

Brand : CHINT

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Function: Protection against overload and short-circuit faults
✅ Standard compliance: IEC/EN 60898-1
✅ Certification: CE, SNI, NOM, EAC, SII, RoHS, REACH, Carbon footprint
✅ Rated current (In): 100A
✅ Rated voltage (Ue):
✅ 220V~/230V~/240V~ (1P, 1P+N, 2P)
✅ 380V~/400V~/415V~ (2P–4P, 3P+N)
✅ Frequency: 50/60 Hz
✅ Tripping characteristics: B, C, D curves
✅ Number of poles: 1P, 1P+N, 2P, 3P, 3P+N
✅ Rated Short-circuit breaking capacity (Icn): 6kA / 10kA (depending on model)
✅ Rated service short-circuit capacity (Ics): 6kA / 7.5kA
✅ Rated insulation voltage (Ui): 500V
✅ Rated impulse withstand voltage (Uimp): 4kV
✅ Mechanical life: 20,000 operations
✅ Electrical life: 10,000 operations
✅ Mounting: 35 mm DIN rail (TH35-7.5)
✅ Connection type: Top or bottom wiring
✅ Terminal capacity:
✅ Minimum: 1 mm²
✅ Maximum: 25 mm²
✅ Tightening torque: 2.0 N m
✅ Operating temperature: −35°C to +70°C
✅ Storage temperature: −35°C to +85°C
✅ Altitude: ≤2000m
✅ Protection Degree:
✅ IP20 (Direct Mounting)
✅ IP40 (Inside Distribution Box)
✅ Pollution Degree: Class II
✅ Compatible Accessories: AX-X1, AL-X1, SHT-X1, OVT-X1, UVT-X1, OUVT-X1
✅ Power Consumption (Per Pole):
✅ 3W (1–10A), up to 13W (63A)
✅ Dimensions: Compact modular design; Compatible with standard distribution boards
